Customised step up gear transmissions are also manufactured by INNOTRANS for specific testing applications. We have manufactured upto 45000 rpm output speed transmissions for testing of motors.
Step-Up Gear Transmissions
Step-Up Gearbox
| Power | 565 kW |
|---|---|
| Reduction Ratio | 1:1.5 |
| Input Speed | 12,000 RPM |
| Output Speed | 19,000 RPM |
| Maximum Output Torque | 400 Nm |
| Application | For Automotive Testing |
Step-Up Helical Gearbox
| Power | 50 kW |
|---|---|
| Reduction Ratio | 1:3 |
| Input Speed | 5000 RPM |
| Output Speed | 15,000 RPM |
| Maximum Output Torque | 160 Nm at 3000 RPM |
| Application | For Automotive Testing |
Step-Up Spur Gearbox
| Power | 18.5 kW |
|---|---|
| Reduction Ratio | 1:2.22 & 1:3.33 |
| Input Speed | 1,500 RPM |
| Output Speed | 5,000 RPM |
| Application | For Hydraulic Pump Testing |

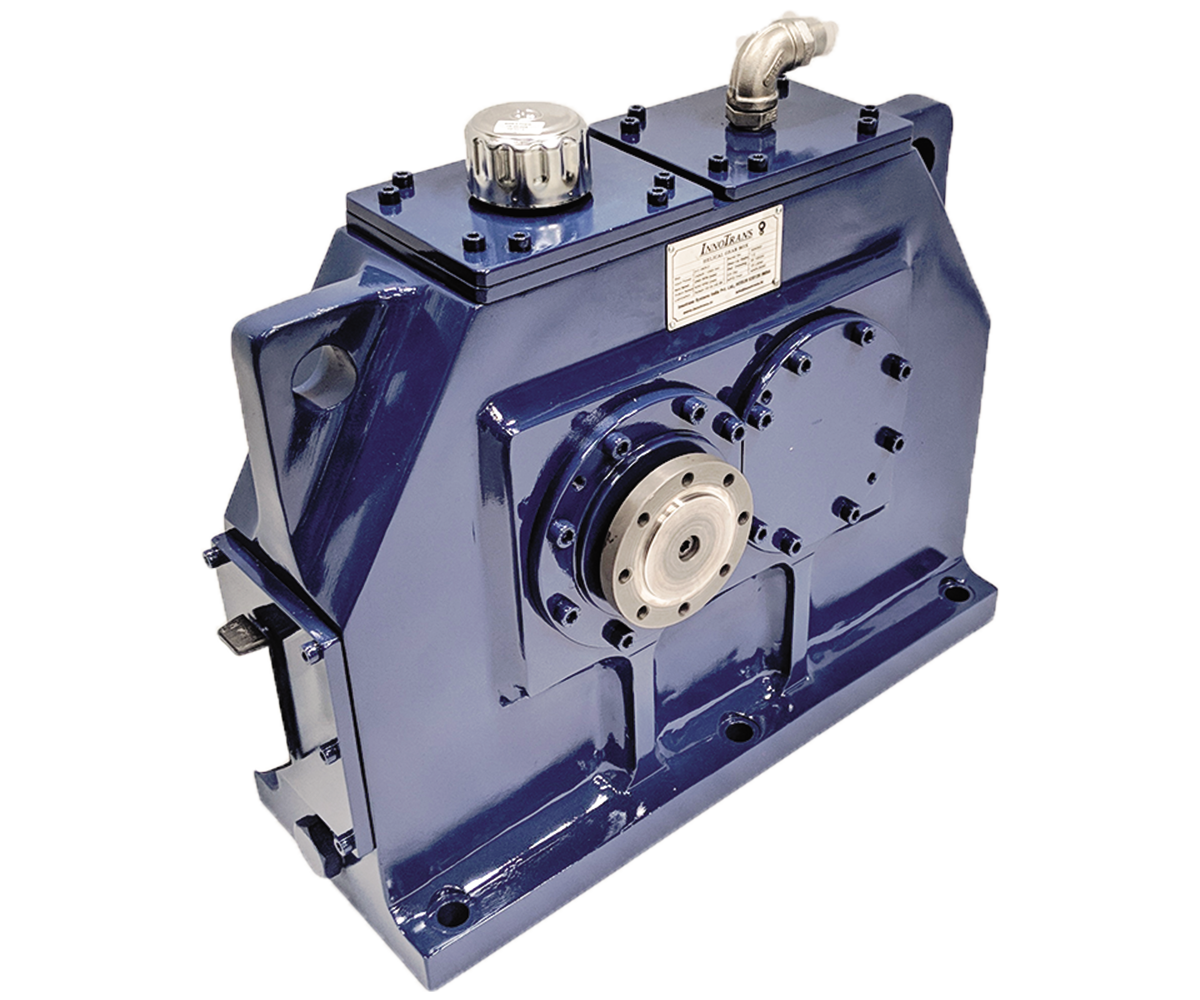

Step-Up Helical Gearbox
| Power | 150 kW |
|---|---|
| Step-Up Ratio | 1:2 |
| Input Speed | 2,500 RPM |
| Output Speed | 5,000 RPM |
| Maximum Output Torque | 500 Nm |
| Application | For Transmission Test Rig |
Step-Up Helical Gearbox
| Power | 65kW |
|---|---|
| Step-Up Ratio | 1:2.5 |
| Input Speed | 1,800 RPM |
| Output Speed | 4,500 RPM |
| Maximum Input Torque | 4250 Nm at 150 RPM |
| Application | For Testing of Transmission Axles |
Step-Up Helical Gearbox
| Power | 130 kW / 675 Nm (max) |
|---|---|
| Step-Up Ratio | 1:1.35 |
| Input Speed | 4,500 RPM |
| Output Speed | 6,000 RPM |
| Maximum Output Torque | 500 Nm |
| Application | For Testing of Transmission Axles |

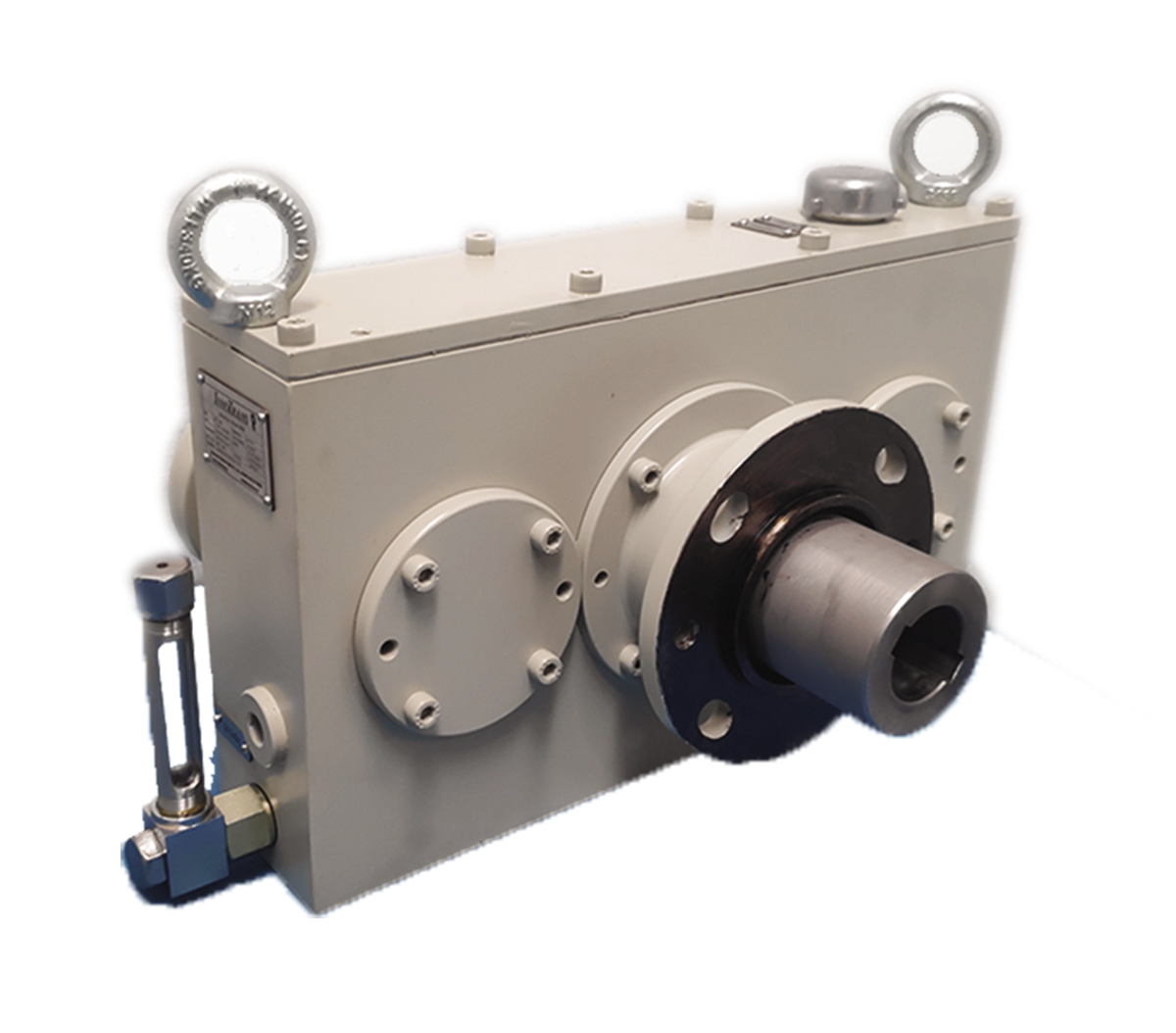

Step-Up Helical Gearbox with two Outputs
| Power | 7.5 kW |
|---|---|
| Step-Up Ratio | 1:1.47 & 1:3.42 |
| Input Speed | 1,500 RPM |
| Output Speed | 2,200 RPM & 5100 RPM |
| Application | For Hydraulic Pump Testing |

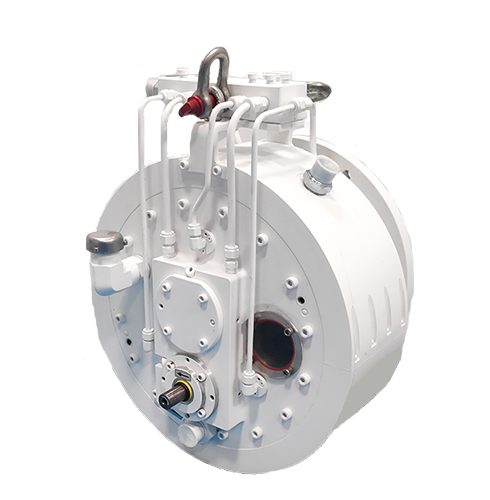

High Speed Gearbox
| Power | 90kW |
|---|---|
| Step-Up Ratio | 5:1 |
| Input Speed | 45,000 RPM |
| Output Speed | 9,000 RPM |
| Input Torque | 45 Nm Peak |
| Application | For Fuel Injection System in Aircraft |
