Helical Gearboxes



Helical Helical Gear Reducer

Helical Gear Reducer

Power 200kW
Reduction Ratio 5:1
Input Speed 10,000 RPM
Maximum Input Torque 1200 Nm
Maximum Output Torque 6000 Nm
Application For Automotive Testing

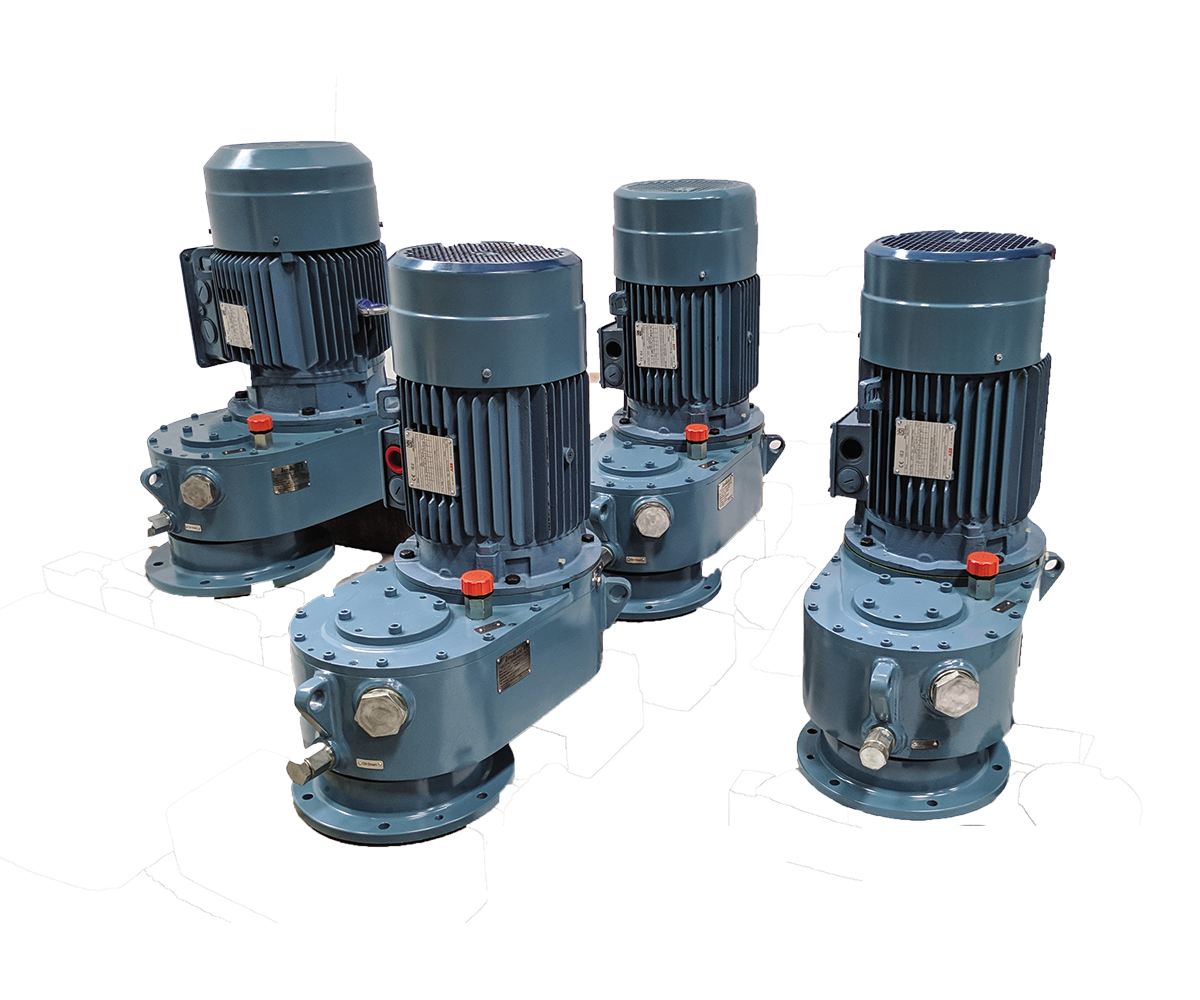

Helical Gear Reducer

Power 7.5 kW
Reduction Ratio 8.5:1
Input Speed 1500 RPM
Output Speed 176 RPM
Maximum Output Torque 4600 Nm
Application For Sugar Mill Application
Helical Gear Reducer
Bevel Helical Gear Reducer

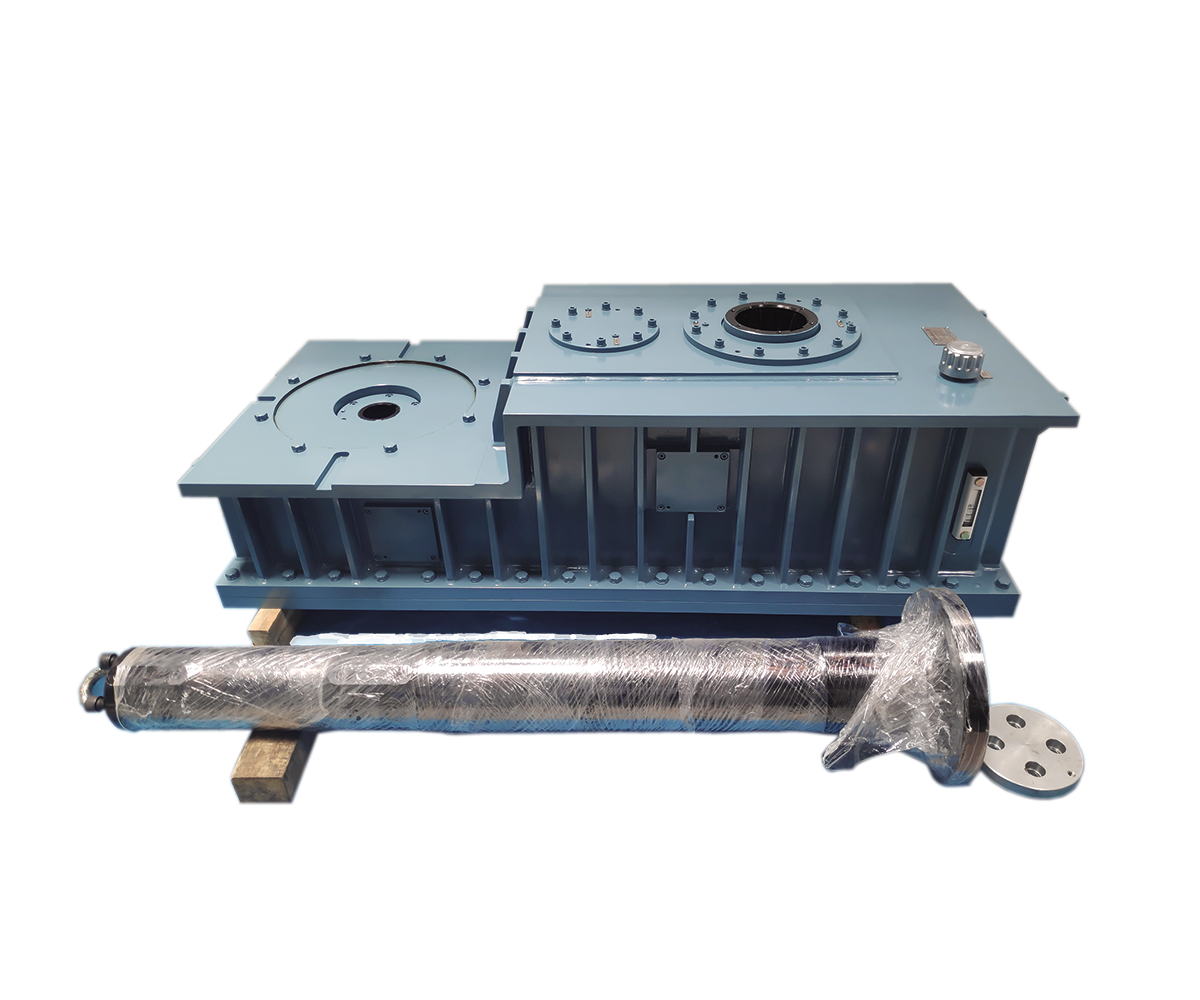

Helical Gear Reducer

Power 90kW
Reduction Ratio 33:1
Input Speed 1500 RPM
Output Speed 45 RPM
Application For Sugar Mill Application

Helical Gear Reducer

Power 18kW/7500 RPM
Reduction Ratio 2.5:1
Maximum Output Torque 65 Nm
Application For Hydraulic Pump Testing
Bevel Helical Gear Reducer
Bevel Helical Gear Reducer

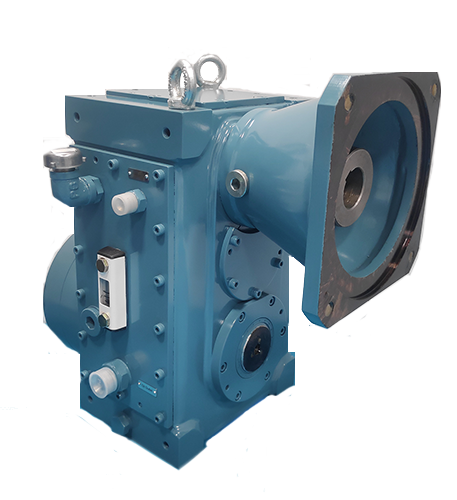

Helical Gear Reducer

Power 18.5kW
Reduction Ratio 16:1
Input Speed 1500 RPM
Output Speed 94 RPM
Maximum Output Torque 1600 Nm
Application For Plastic Extruding

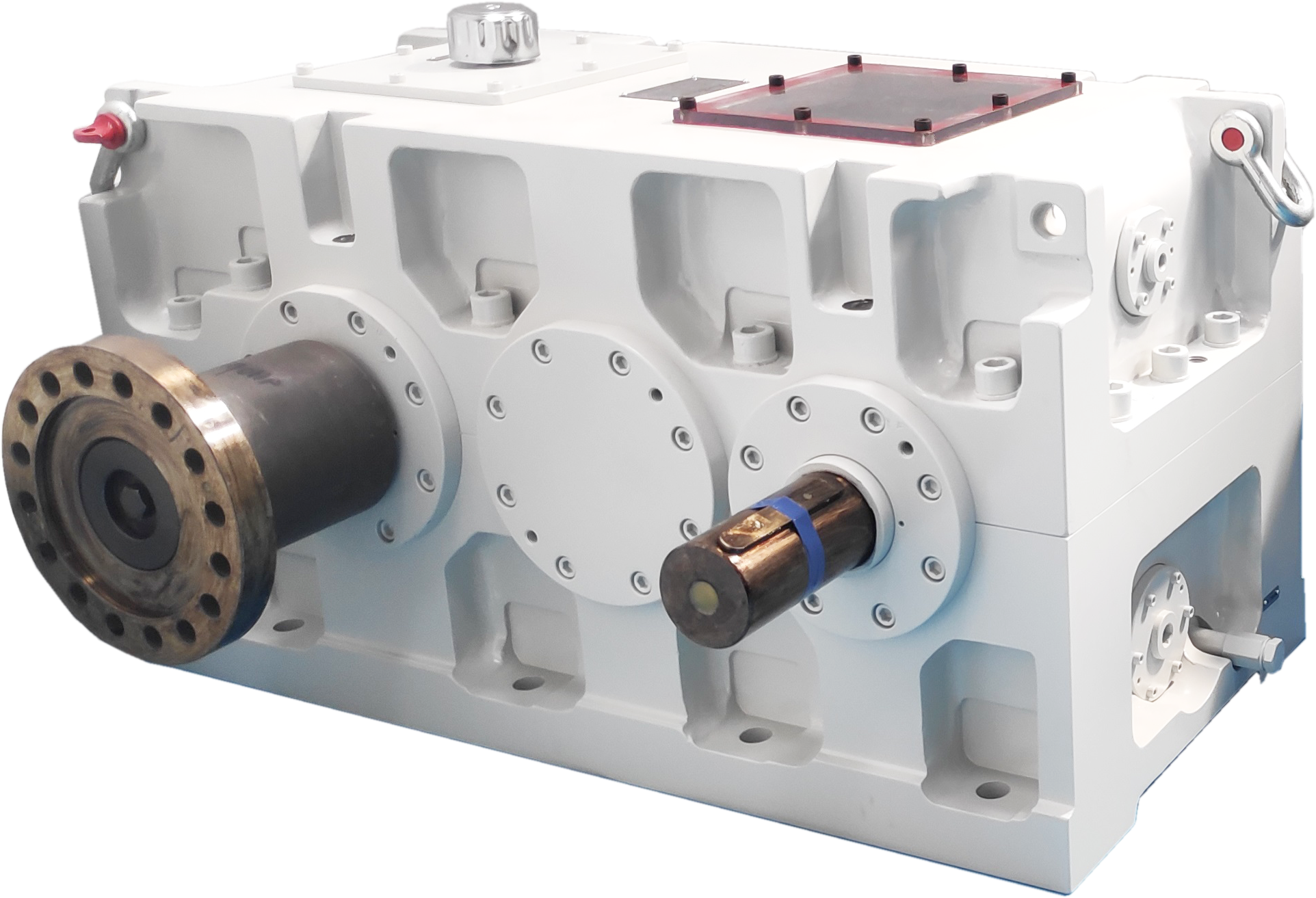

Helical Gear Box

Power 50 HP
Reduction Ratio 5.97:1
Input Speed 2400 RPM
Maximum Output Torque 4000 Nm at 40 RPM, 240 Nm at 400 RPM
Application For Automotive Transmission Testing
Helical Gear Reducer
Bevel Helical Gear Reducer

Helical Gear Reducer

Power 50 HP
Reduction Ratio 12:1
Input Speed 2040 RPM
Maximum Output Torque 6000 Nm at 10 RPM, 2250 Nm at 170 RPM
Application For Automotive Transmission Testing

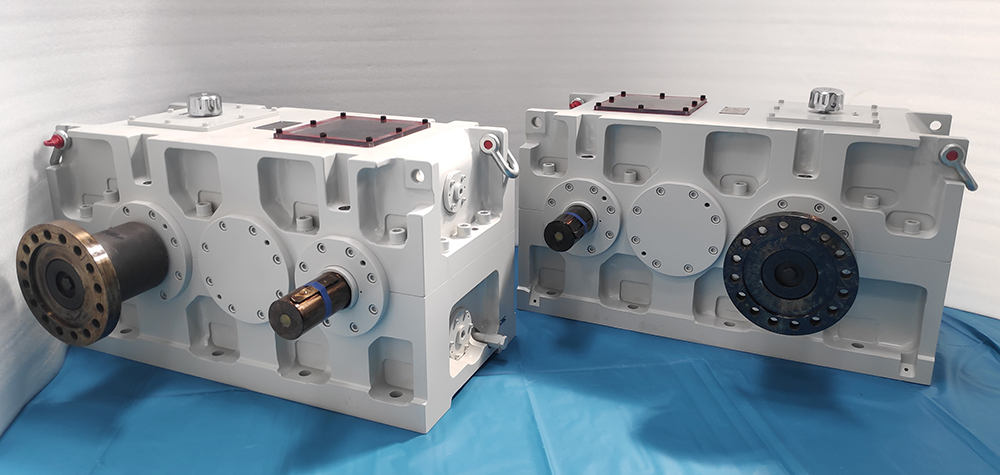

Helical Gear Box

Power 90 HP
Reduction Ratio 8.97:1
Input Speed 1350 RPM
Maximum Output Torque 13,000 Nm at 45 RPM, 2400 NM at 150 RPM
Application For Automotive Transmission Testing
Bevel Helical Gear Reducer
Bevel Helical Gear Reducer

Helical Gear Box

Power 150 HP
Reduction Ratio 13:1
Input Speed 2600 RPM
Maximum Output Torque 20,000 Nm at 55 RPM, 5100 at 200 RPM
Application For Automotive Transmission Testing

Helical Gear Box

Power 150 HP
Reduction Ratio 20:1
Input Speed 2800 RPM
Maximum Output Torque 30,000 Nm at 35 RPM, 3800 Nm at 140 RPM
Application For Automotive Transmission Testing
Helical-Gera-Reducer,-Ratio-20_1,-30000Nm,-for-150-HP-Rear-Axle-of-Tractor-Loading
Bevel Helical Gear Reducer

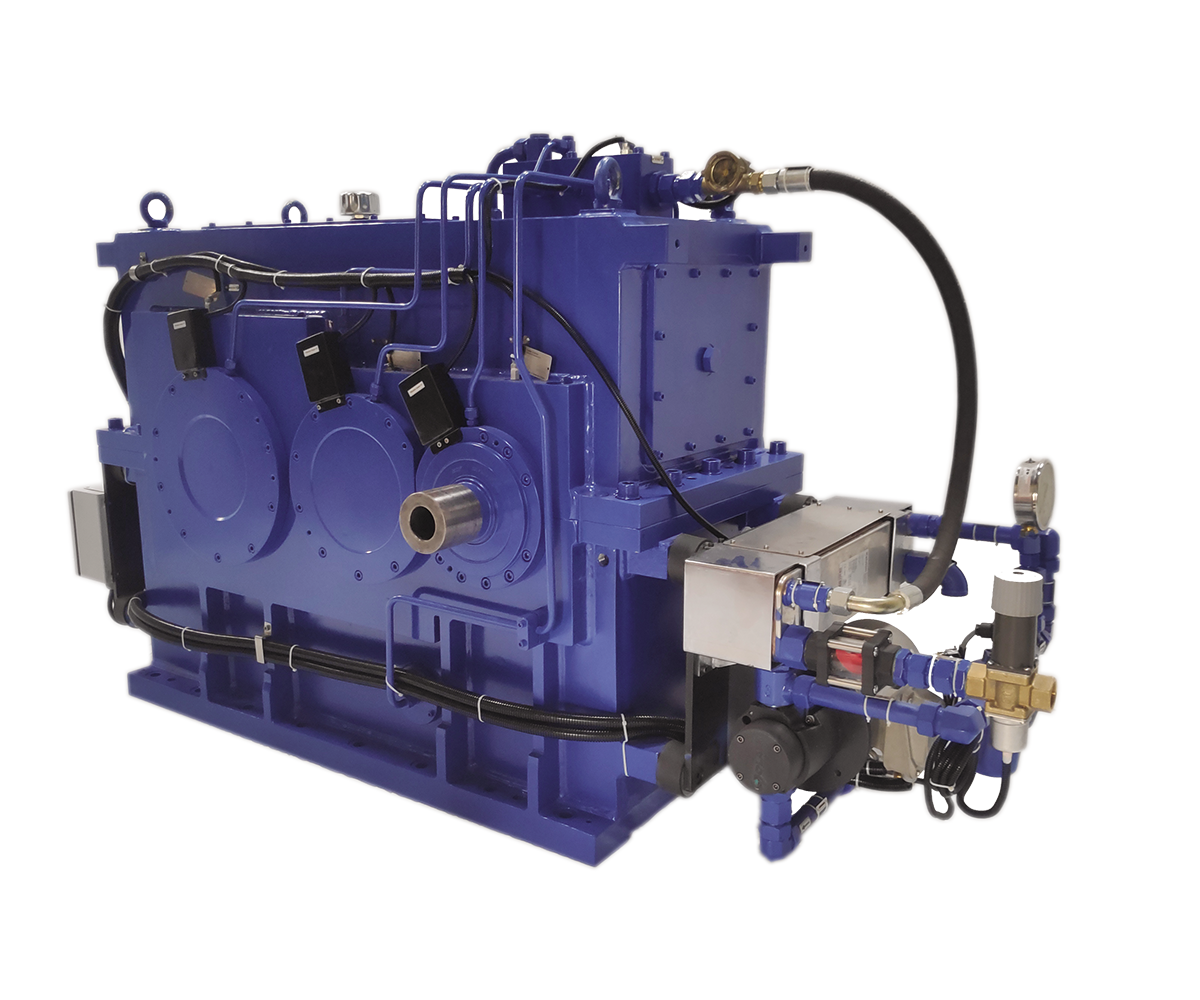

Helical Gear Reducer

Input Power 500 kW / 795 RPM, 4000 RPM Max
Input Torque 6000 Nm Max.
Reduction Ratio 6.6:1
Output Speed 600 RPM Max.
Maximum Output Torque 50000 Nm
Application For Automotive Testing

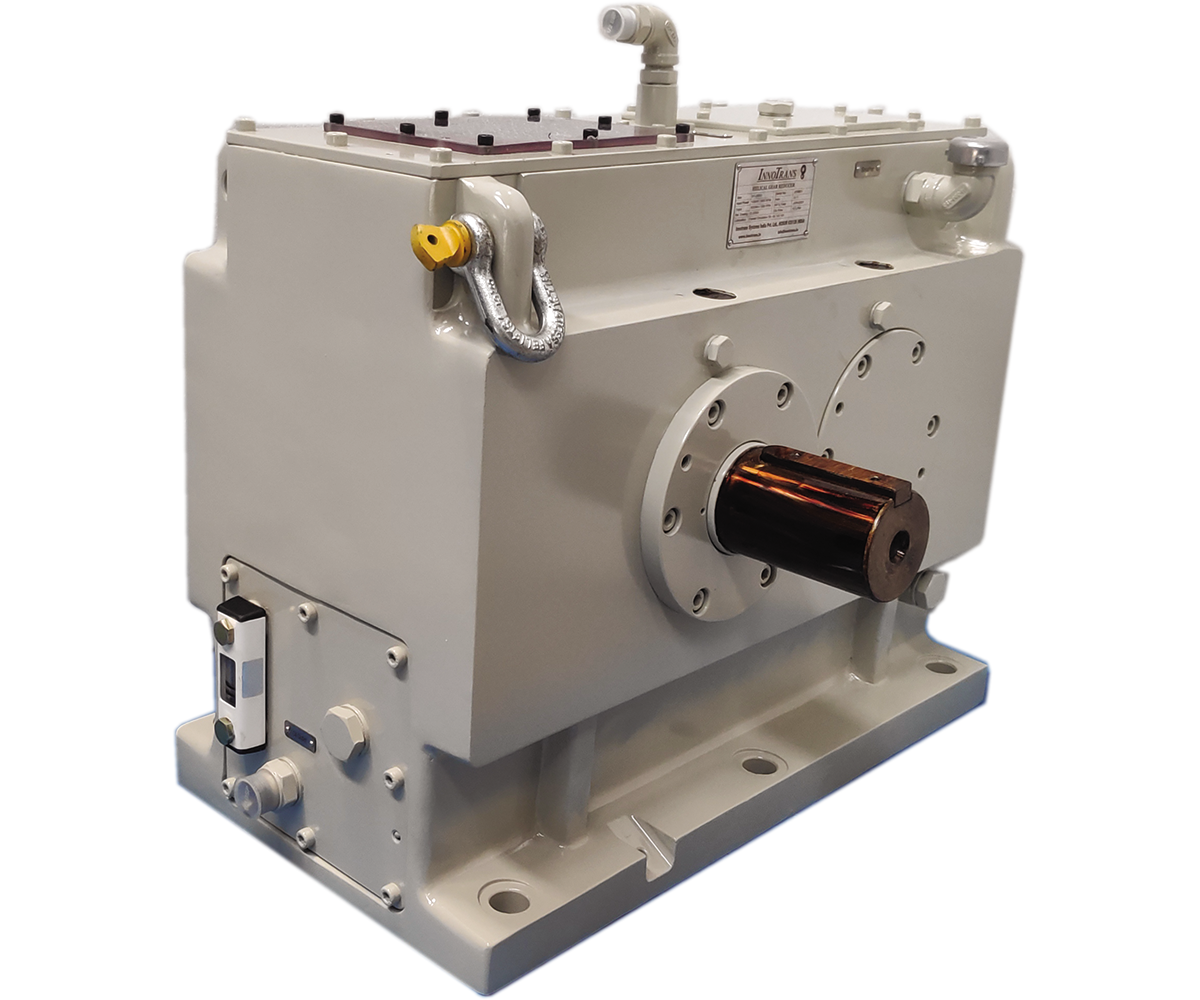

Helical Gear Reducer

Input Power 100 kW/1000 RPM, 3000 RPM Max.
Output 3000 Nm Max., 1000 RPM
Reduction Ratio 3:1
Application For Testing of Transmission Axles
Bevel Helical Gear Reducer
